Creality CR-Scan Raptor 3D Scanner
LKR 604,200.00
💰 Save More with Different Payment Options
| Payment Method | Final Price | Discount |
|---|---|---|
| Direct bank transfer | LKR 530,000.00 | –LKR 74,200.00 (12.3% Off) |
| Cash on delivery | LKR 530,000.00 | –LKR 74,200.00 (12.3% Off) |
| PayHere | LKR 548,656.00 | –LKR 55,544.00 (9.2% Off) |
| Paykoko | LKR 604,200.00 | — |
Main price shown above is the product price. Discounts will be applied at the checkout.
- 6-Month Warranty Included for worry-free operation.
- Scan tiny parts to large objects: Capture objects from as small as 5 mm up to 2 m.
- Fine detail: Blue-laser scanning reaches up to 0.02 mm accuracy.
- Fast scanning: Capture at up to 60 fps in blue-laser mode.

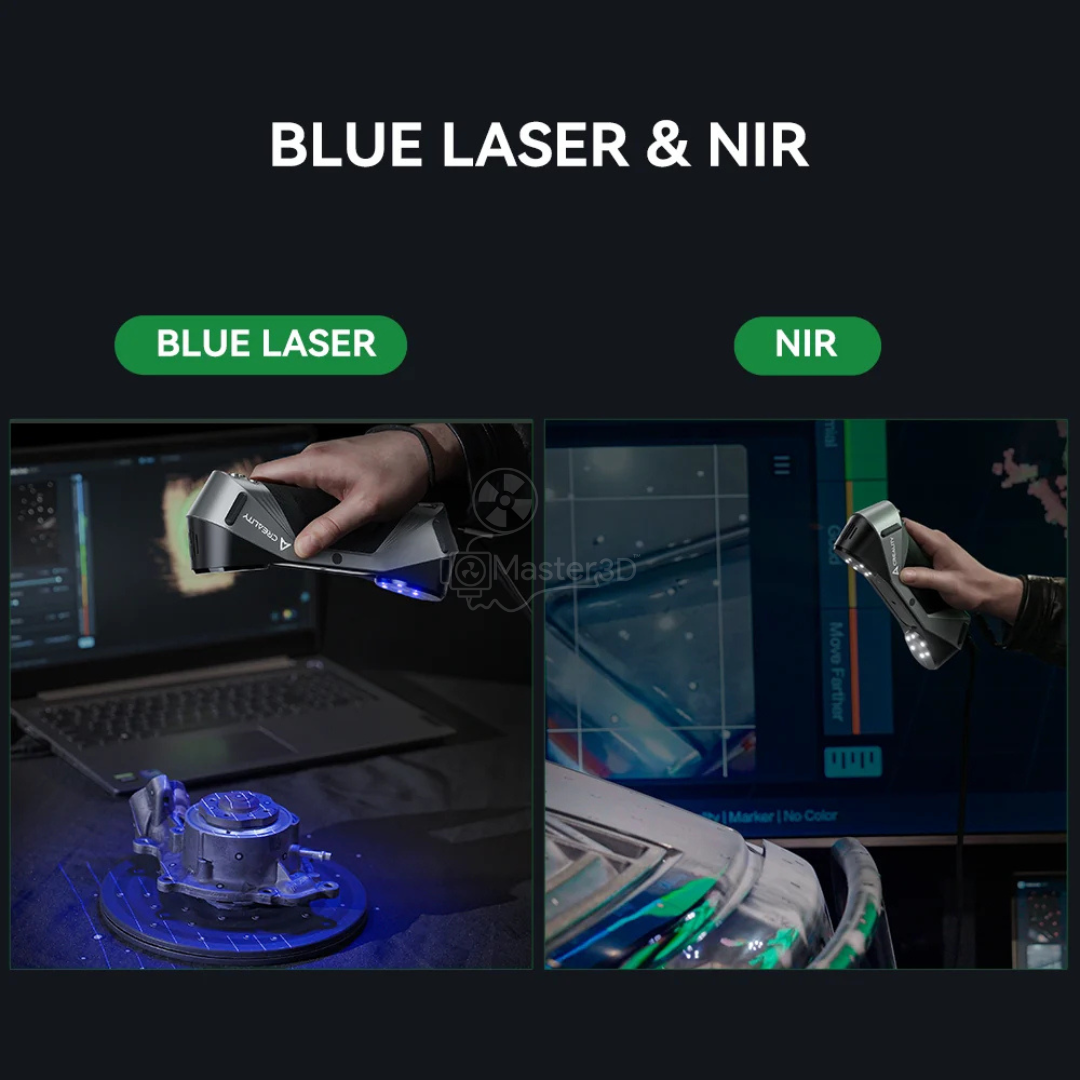

- Two scanning modes: Combine 7 blue laser lines with structured NIR infrared scanning.
- Colour, without the extra fuss: Capture 24-bit colour and scan black or metal objects without scan sprays.
2 in stock

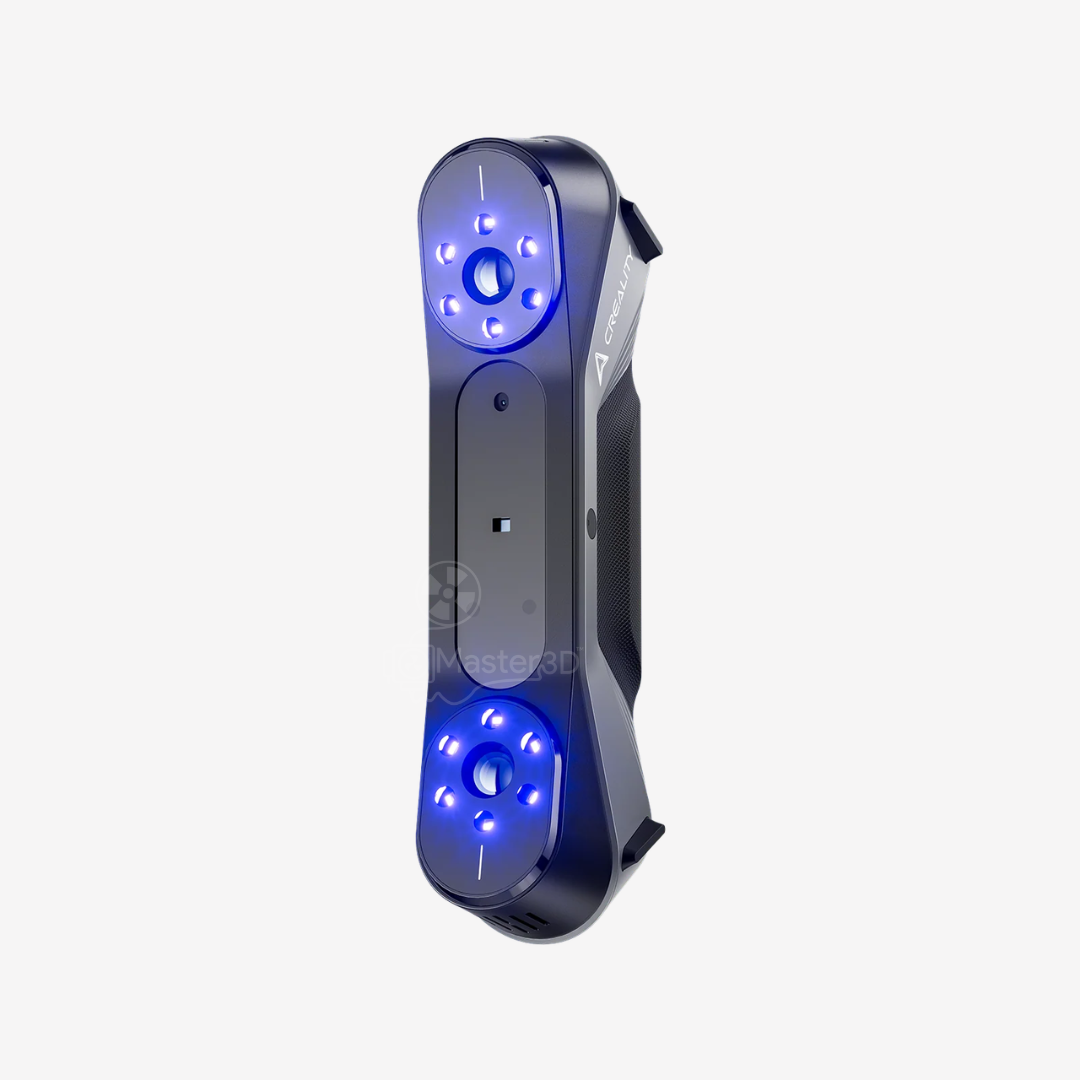

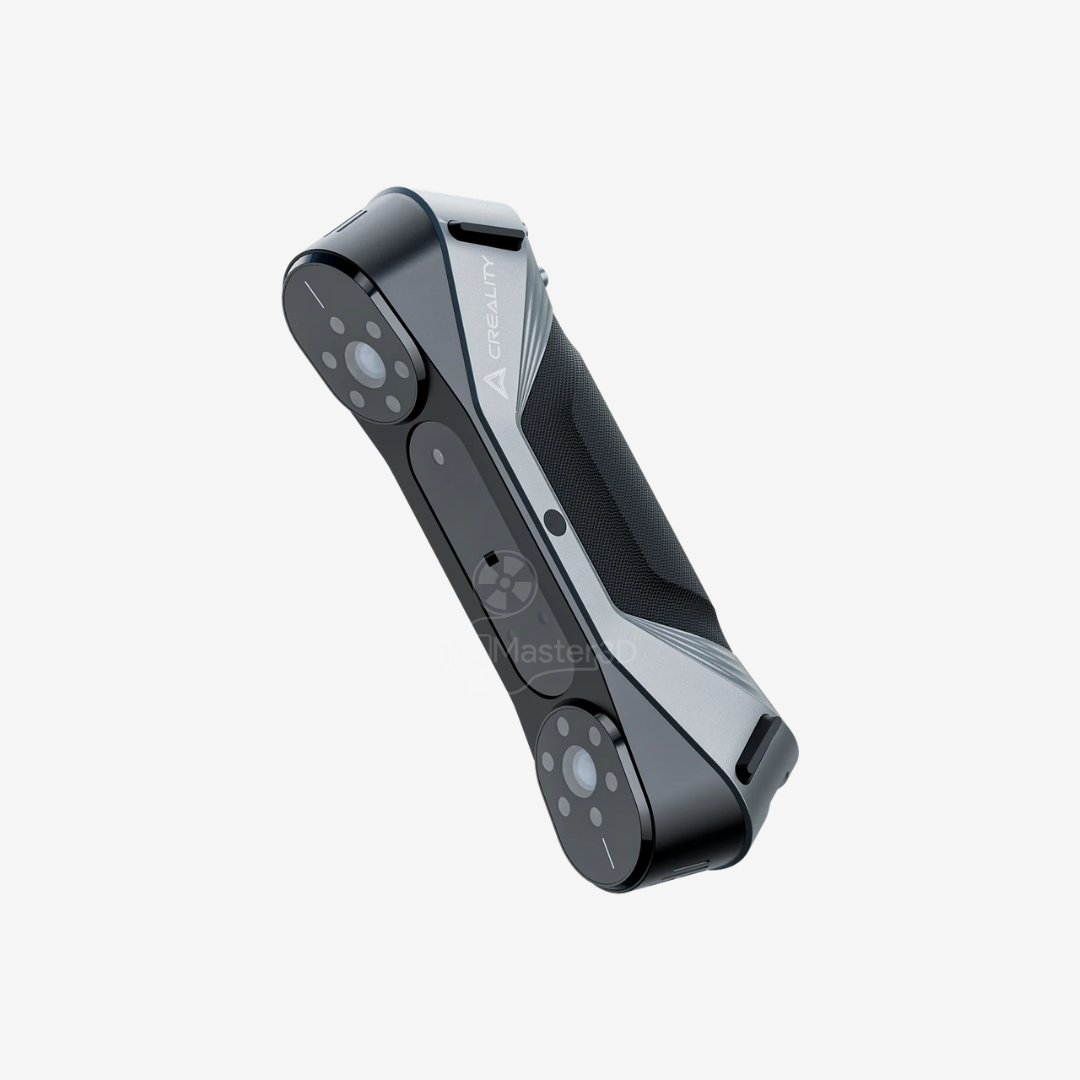

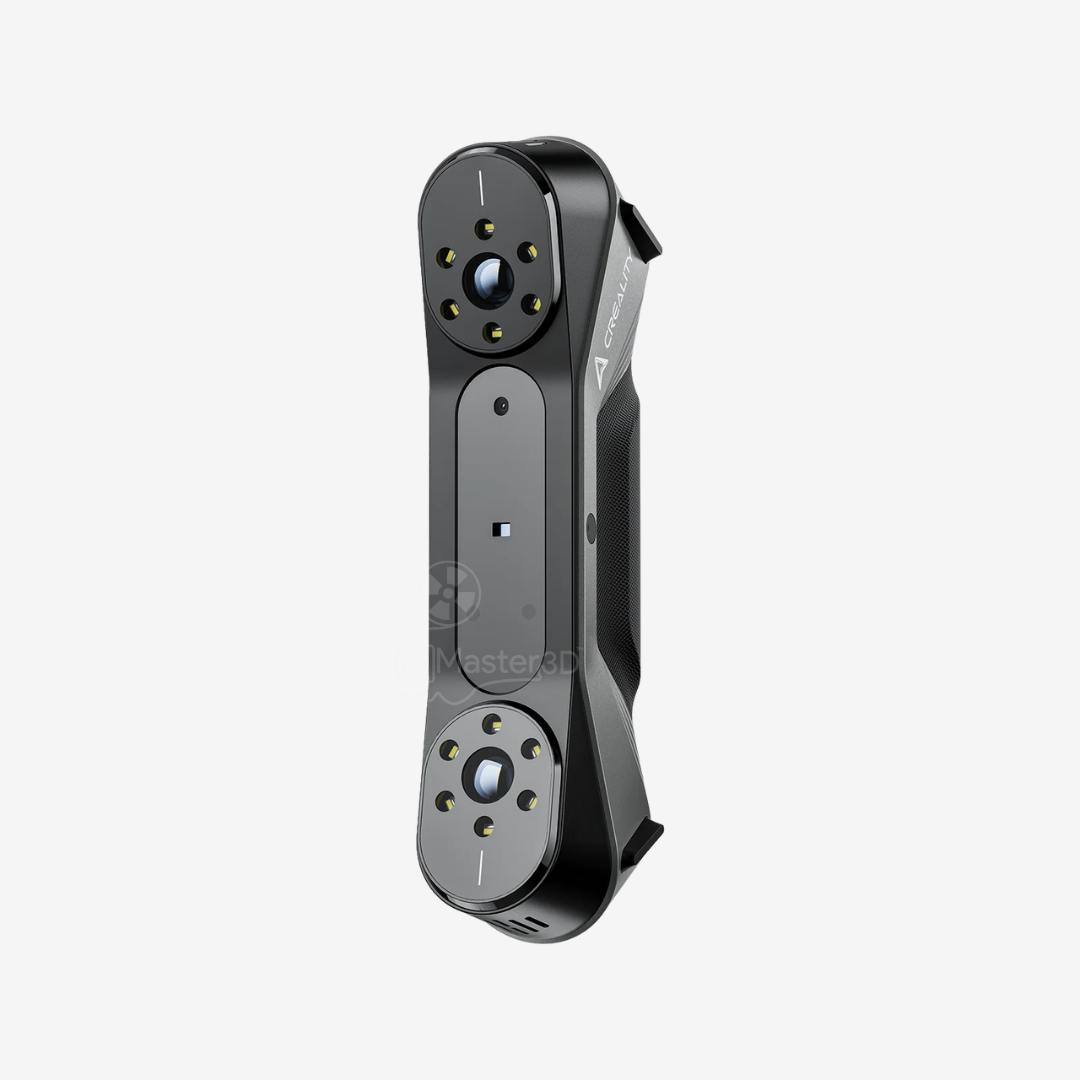

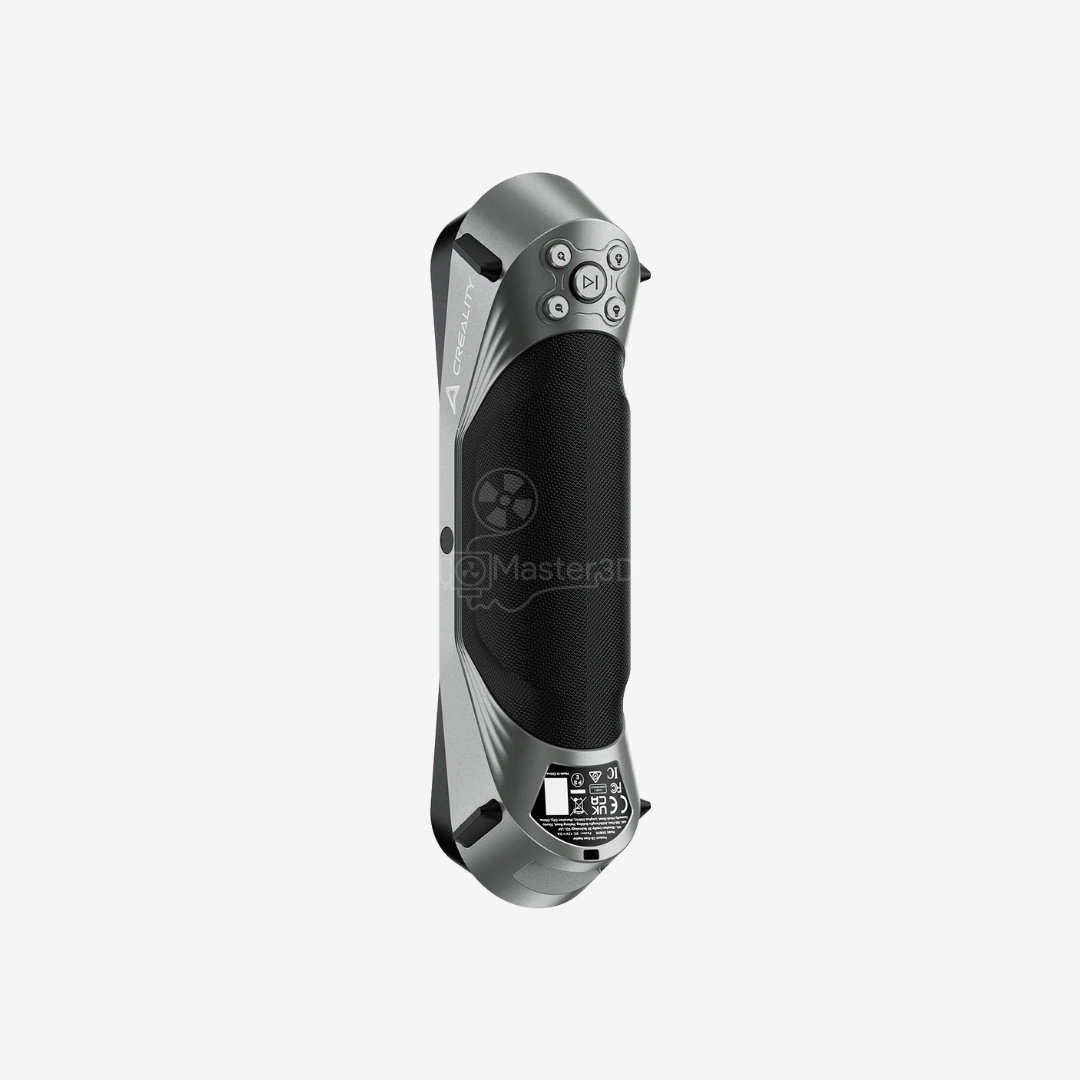

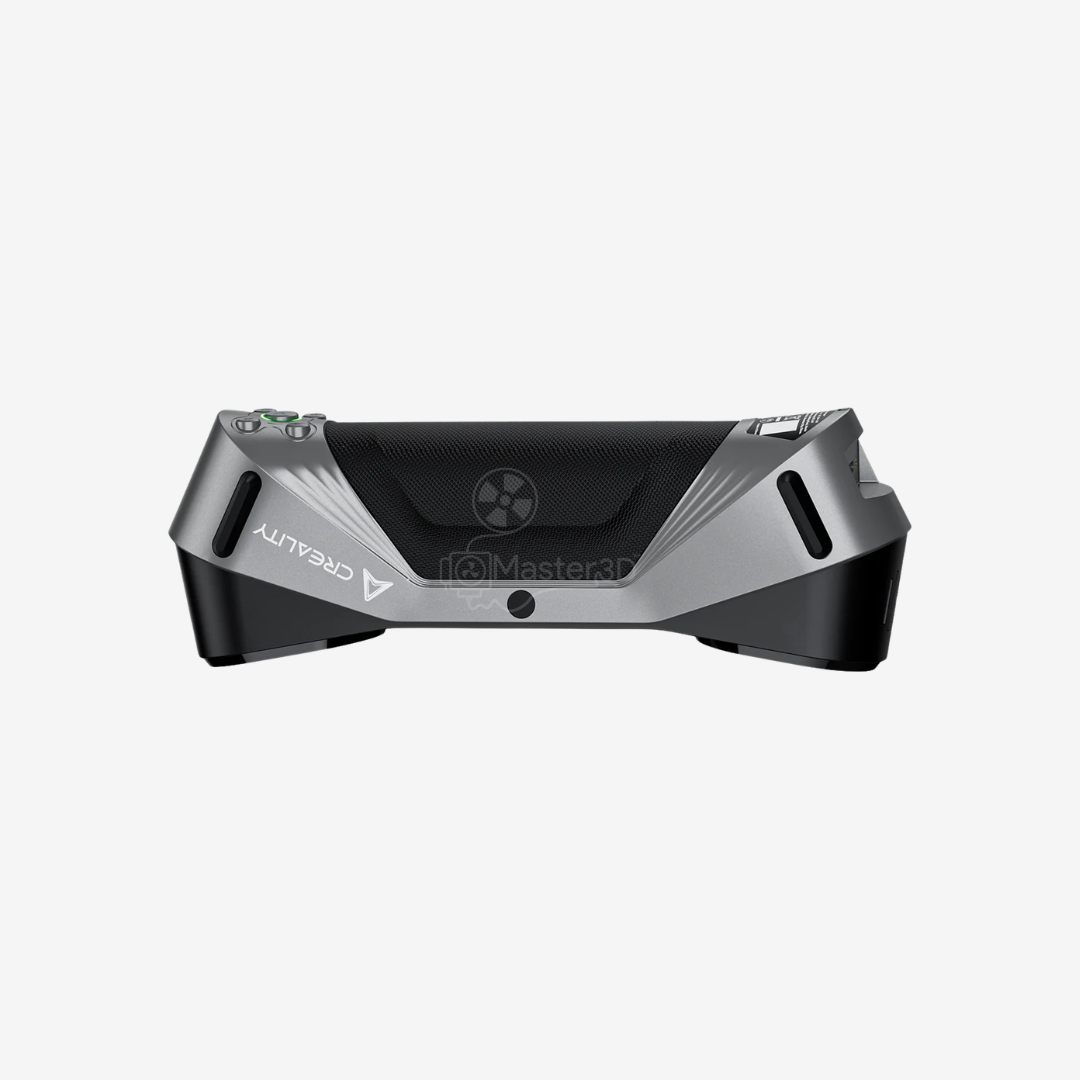

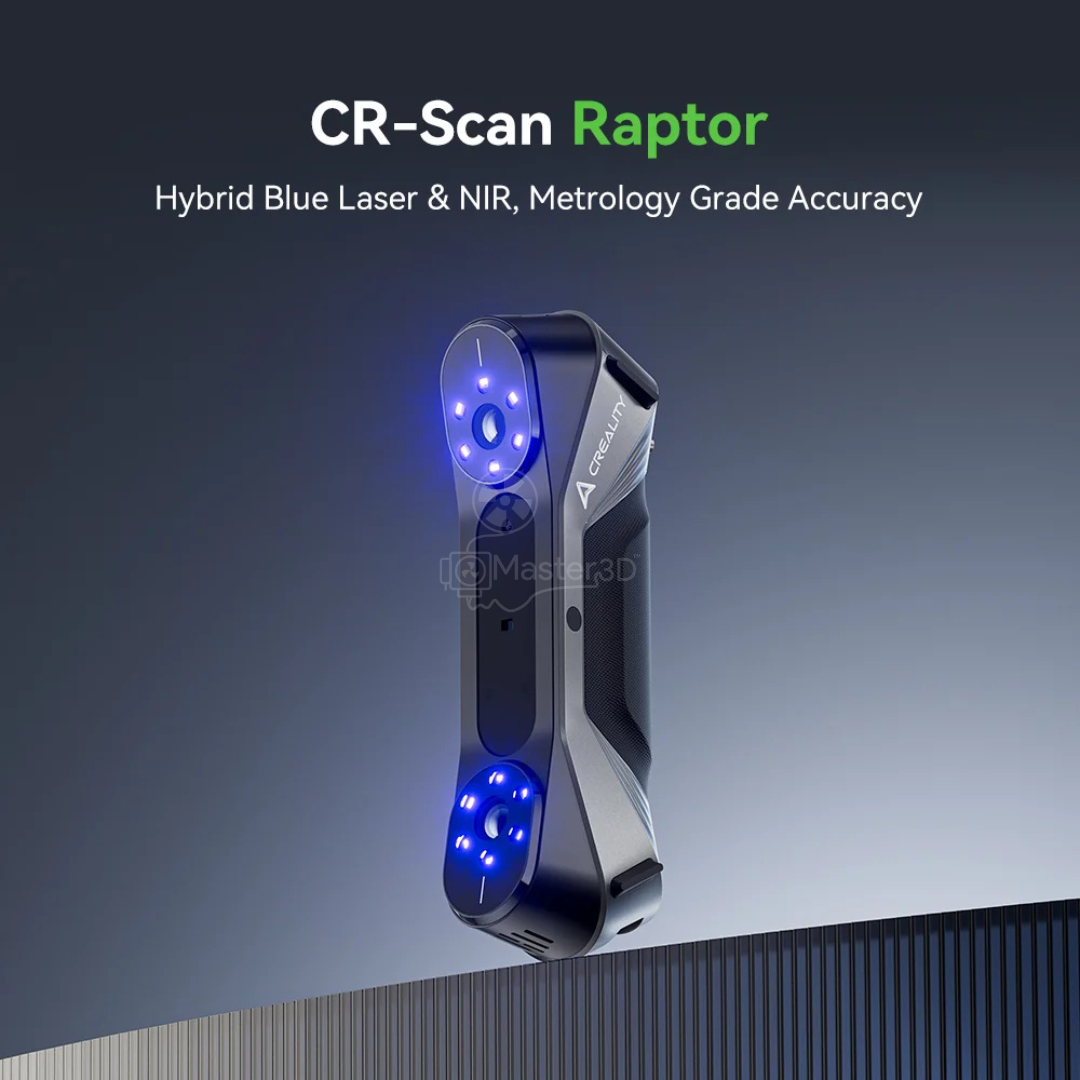

Creality CR-Scan Raptor 3D Scanner
Bring Real Objects Into Your Digital Workflow
Need to turn a physical part into a detailed 3D model? The CR-Scan Raptor combines seven parallel blue laser lines with structured infrared light, letting you scan objects ranging from tiny components to larger forms. Its scanning accuracy reaches up to 0.02 mm in blue-laser mode, making it useful for work such as reverse engineering, automotive parts, digital modeling and AR/VR assets.

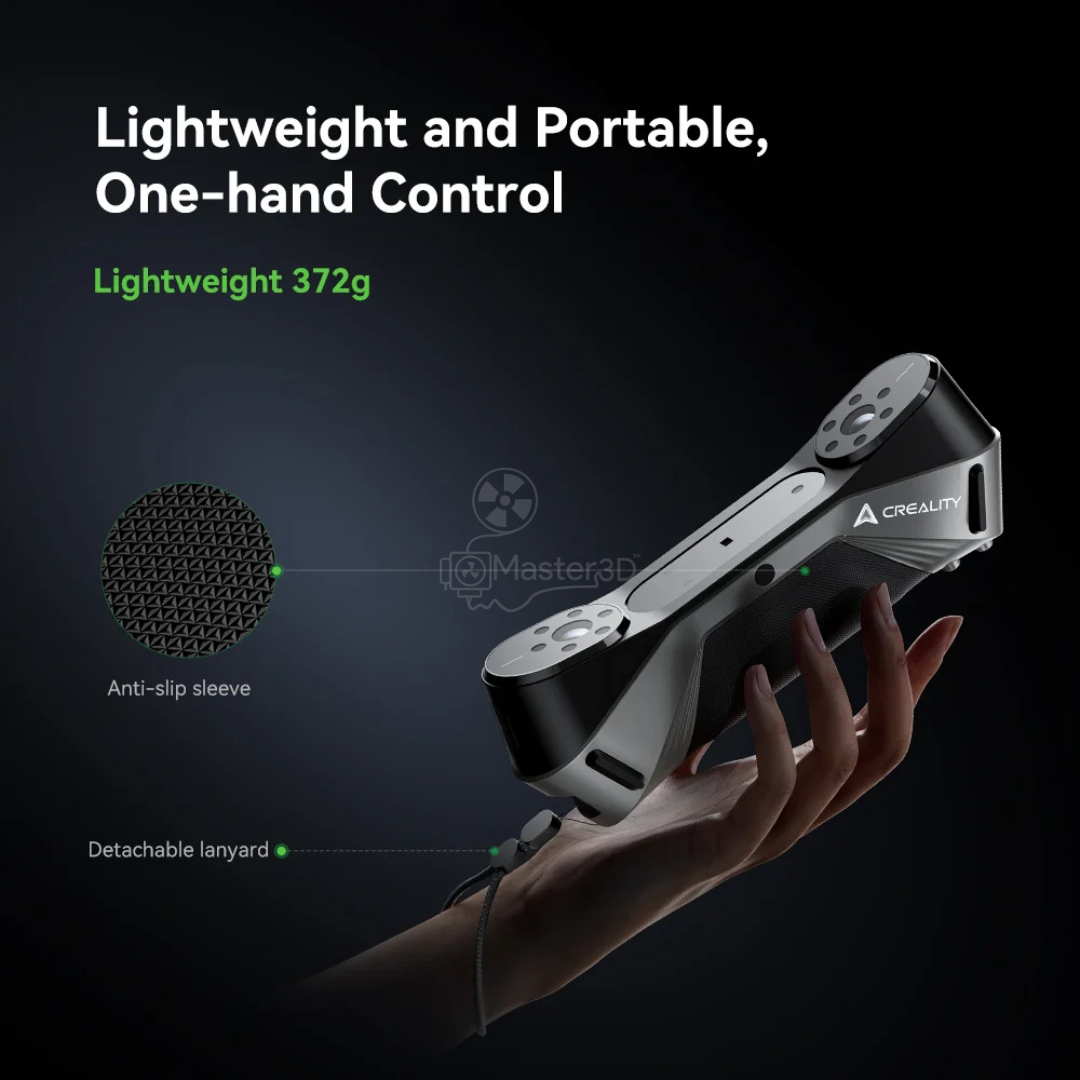

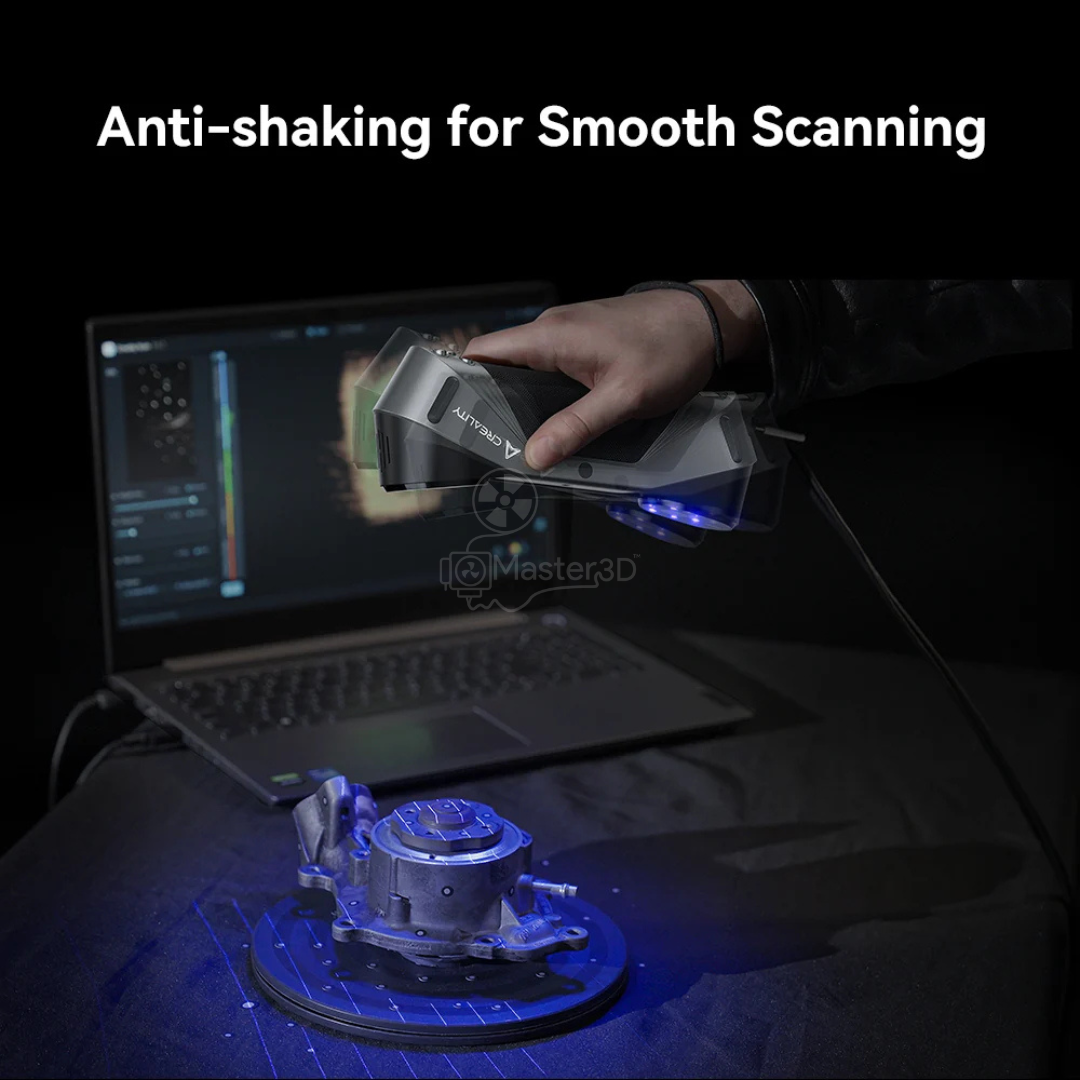

At Master3D, we offer the Creality CR-Scan Raptor 3D Scanner for creators and professionals who want detailed scans with less setup. It supports 24-bit colour scanning, anti-shake protection and scanning of black or metal objects without scan sprays. At 372 g, it’s light enough for handheld use during longer scanning sessions.
Key Specifications
- Scanning technology: Seven parallel blue laser lines and structured NIR infrared light
- Accuracy and 3D resolution: Blue laser accuracy up to 0.02 mm at 100 mm, with 0.02–2 mm resolution; NIR accuracy up to 0.1 mm, with 0.1–2 mm resolution
- Scanning speed: Up to 60 fps in blue-laser mode and 20 fps in NIR mode
- Object size: Scans objects from 5 × 5 × 5 mm³ up to 2,000 × 2,000 × 2,000 mm³; NIR mode has a minimum scan volume of 150 × 150 × 150 mm³
- Connection and compatibility: Type-C and USB 3.0 interfaces; supports Windows 10/11 (64-bit) and macOS
A Flexible Tool for Detailed Scanning
From capturing small parts to digitizing larger objects, the Raptor gives you two scanning modes in one compact device. Its colour capture and broad object-size range make it a practical choice for design, modelling and inspection workflows.
FAQ

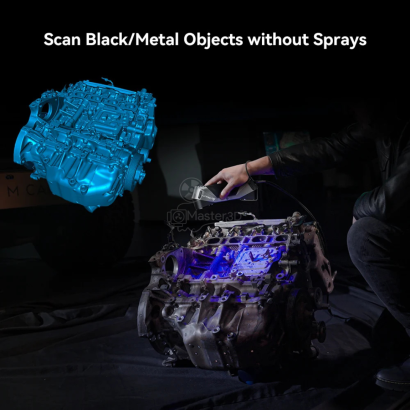

- Q.Can it scan black or metal objects without spray?
A.Yes. The product listing says the Raptor can scan black and metal objects without scan sprays. - Q.Does it capture colour and texture?
A.Yes. It supports 24-bit colour scanning and colour mapping, with white LEDs to illuminate the object. - Q.Which computers can I use with it?
A.The listed operating systems are Windows 10/11 (64-bit) and macOS. The scanner connects through Type-C or USB 3.0.Specification Details Scanning technology Blue-light scanning with 7 parallel laser lines
structured NIR infrared scanningScanning accuracy Blue laser: up to 0.02 mm at 100 mm
NIR: up to 0.1 mm3D resolution Blue laser: 0.02–2 mm
NIR: 0.1–2 mmScanning speed Blue laser: up to 60 fps
NIR: up to 20 fpsMinimum scan volume Blue laser: 5 × 5 × 5 mm³
NIR: 150 × 150 × 150 mm³Maximum object size Up to 2,000 × 2,000 × 2,000 mm³ Working distance Blue laser: 150–400 mm
NIR: 170–1,000 mmColour scanning Yes, with colour mapping and 24-bit colour capture Alignment modes Blue laser: marker

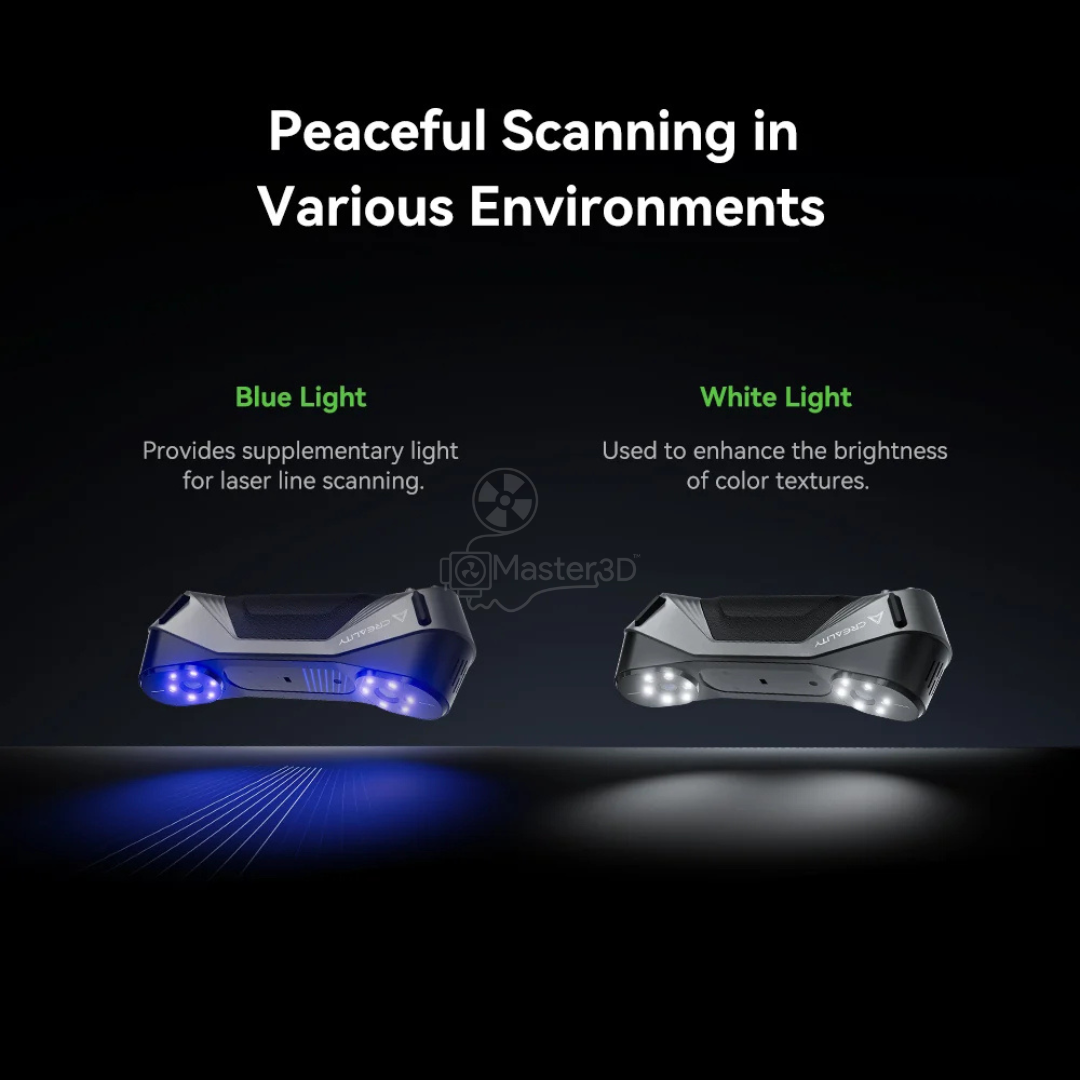

NIR: marker, geometry and texture3D imaging camera resolution 1920 × 1200 Lighting 12 white LEDs; 12 infrared LEDs for marker detection Image stabilization IMU and anti-shake support Laser safety class Class 1 Interface Type-C and USB 3.0 Input power 12 V, 2 A Supported operating systems Windows 10/11 (64-bit) and macOS Device dimensions 215 × 50 × 74 mm Device weight 372 g Disclaimer: Dimensions and weight may differ slightly. Pictures are for reference only.
| Weight | 1.5 kg |
|---|
